特点Features
●适用于各种局部净化设备和洁净厂房的末端净化
●Applicable to various local purification euipment and clean workshop end purification
Materials and operating conditions
●External frane:Galvanized the casing outside the box or aluminum alloy
●Sealant:Gel-glue
●Filter media:JiaoBanZhi
●Gasket:EVA
●Filter media:Glass fiber
●Use the highest temperature, humidity:80℃、80%
Standard specification
<table border=&uot;1&uot; cellspacing=&uot;0&uot; font-size:14px;width:507pt;border:none;&uot;=&uot;&uot; style=&uot;border-spacing: 0px; color: rgb(51, 51, 51); font-family: Arial, &uot;microsoft yahei&uot;, Helvetica, sans-serif; font-size: 14px; text-align: start; white-space: normal;&uot;>型号 model | 外形尺寸 Outside dimensions (mm) | 额定风量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率(比色法) Efficiency (%) | 容尘量 Dust capacity (g) |
CJ-H3-L1 | 305×305×150 | 250 | ≤220 | ≥ | 200 |
CJ-H3-L2 | 320×320×220 | 400 | ≤220 | ≥ | 350 |
CJ-H3-L3 | 484×484×150 | 600 | ≤220 | ≥ | 400 |
CJ-H3-L4 | 484×484×220 | 1000 | ≤220 | ≥ | 600 |
CJ-H3-L5 | 726×484×220 | 1500 | ≤220 | ≥ | 900 |
CJ-H3-L6 | 968×484×220 | 2000 | ≤220 | ≥ | 1200 |
CJ-H3-L7 | 610×610×150 | 1000 | ≤220 | ≥ | 600 |

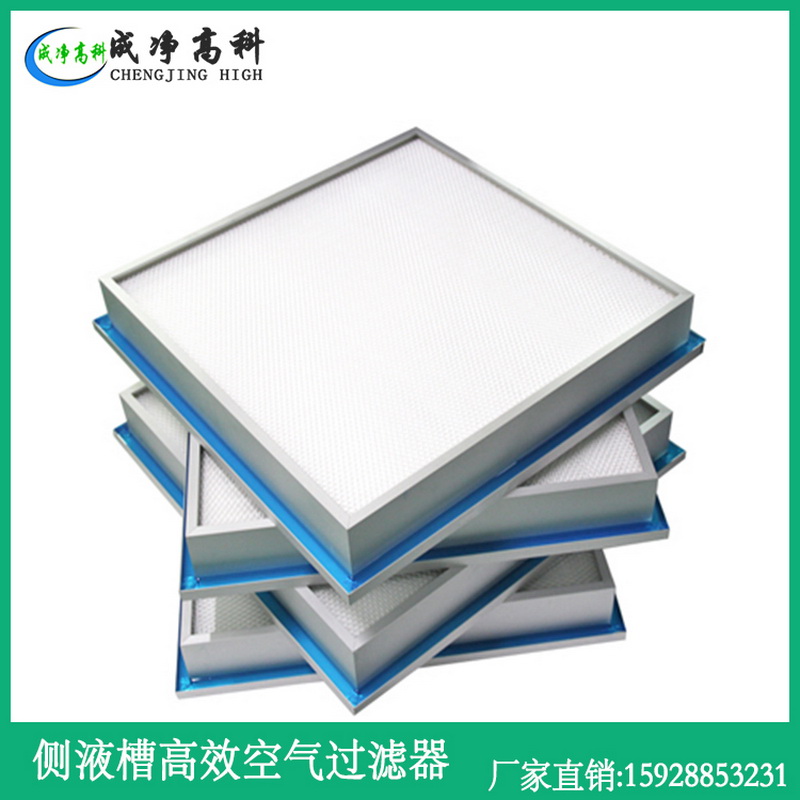

超细玻纤滤材高效过滤器,成都超细玻纤空气过滤器
超细玻纤滤材高效过滤器,成都超细玻纤空气过滤器是成都成净高科净化设备有限公司的主要产品,我们的产品负责人是詹先生,有需要的朋友请直接拨打我的电话028-87849573,我们的地址是成都高新西区科技园,期待与您的合作!
