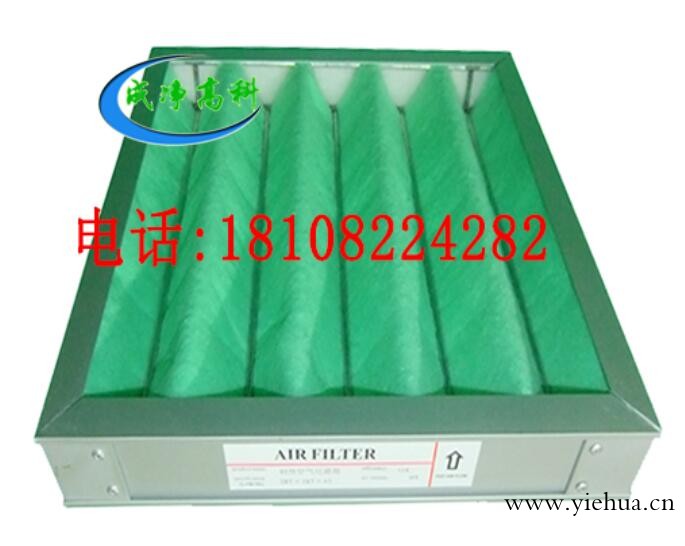

初效袋式空气过滤器

Air filter bag filter early effect

特点Features

●可重复使用多次

●阻力小、风量大

●广泛运用于空调系统的中级过滤

●Adopts reusable times

●Responding to small resistance, air

●Widely used in air conditioning system of intermediate filtration

构成材料及运行条件

Materials and operating conditions

●框材:铝合金或镀锌板外框

●External frane:Aluminum alloy steel or frame

●滤料材质:新型复合无纺布

●Filter material: new composite nonwoven fabric

●滤料颜色:白色

●Liao color: white

●密封条:醋酸乙酯

●Gasket:EVA

●使用温度、湿度:80℃、80%以内

●Use the highest temperature, humidity:80℃、80%

型号尺寸及-参数

Standard specification

型号 model	外形尺寸 Outside Dimensions (mm)	额定风量 Rated air flow (m3/h)	初阻力 Initial resistance(Pa)	效率(级别) Efficiency (class)	滤料颜色 Liao color	袋数 pockets
CJ-S10-A1	495×295×500mm 20″×12″×20″	1500m3/h	25~35Pa	25-35% G3 35-45% G4	White	5
CJ-S10-A2	495×495×500mm 20″×20″×20″	2500m3/h				5
CJ-S10-A3	595×295×500mm 24″×12″×20″	2000m3/h				6
CJ-S10-A4	595×495×500mm 24″×20″×20″	3200m3/h				6
CJ-S10-A5	595×595×500mm 24″×24″×20″	3800m3/h				8
CJ-S10-A6	495×295×600mm 20″×12″×24″	1800m3/h				5
CJ-S10-A7	495×495×600mm 20″×20″×24″	3200m3/h				5
CJ-S10-A8	595×295×600mm 24″×12″×24″	2500m3/h				6
CJ-S10-A9	595×495×600mm 24″×20″×24″	4000m3/h				6
CJ-S10-A10	595×595×600mm 24″×24″×24″	4500m3/h				8

*可要据用户要求定制不同规格型号的过滤器AAF初效空气过滤器替代品|AAF中效空气过滤器替代品

According to user reuirements to customize different specifications and types of filters

AAF初效空气过滤器替代品|AAF中效空气过滤器替代品是成都成净高科净化设备有限公司的主要产品,我们的产品负责人是詹先生,有需要的朋友请直接拨打我的电话028-87849573,我们的地址是成都高新西区科技园,期待与您的合作!
