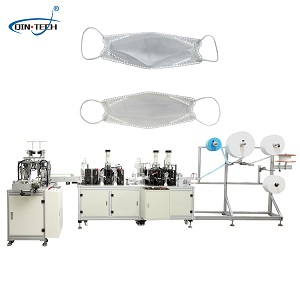

全自动鱼型KF94口罩机   Automatic fish mask machine

AMM-1-1F

一、基本介绍Basic introduction

全自动kf94鱼型口罩机:秦泰盛公司依据客户需求,通过PLC编程控制,通过自动送料,压纹、对折、切边,翻转,焊接耳带等工艺一次成型,成功研发设计出全新的全自动鱼型口罩机,本机具有自动化程度高,操作简单,更人性化的特点.

Fully automatic fish mask machine: According to customer needs, in-Tech is controlled by PLC programming, through automatic feeding, embossing, folding, trimming, flipping, welding ear straps and other processes at one time, successfully developed and designed a new automatic fish-shaped mask machine High degree, - operation and more user-friendly features.

二、设备技术参数 Technical Parameters

型号:AMM-1-1F(一拖一) Model: AMM-1-1F (one drag one)

材料:两层无纺布两层熔喷布

Material: 3-4 ply of non-woven fabric

电压:AC 220V,50HZ

Voltage: AC 220V, 50HZ

重量:1450KG

Weight: 1450KG

外观尺寸:6*4680

料架:1700(L)x600(W)1780(H) ; 重量:310kg

打片机:2600(L)x650(W)1300(H) ;  重量:670kg

耳带焊接: 1850(L)x700(W)1600(H) ;重量:470kg

Size:

Feeder: 1700(L)x600(W)1780(H); Weight:310kg

Folding and welding machine: 2600(L)x650(W)1300(H);  Weight:670kg

Ear belt machine: 1850(L)x700(W)1600(H); Weight:470kg

效率: 70pcs/min(±10%)

Efficiency: 70pcs/min(±10%)

产品规格:可依据客户要求进行定制

Product specifications: can be customized according to customer reuirement.

适用行业:一次性医疗防护用品

Applicable industries: disposable medical protective euipment

三、产品特性Product Features

整机由料架部分,上鼻线部分,外形熔接部分,折叠成型,外形切刀部分,焊接耳带部分,成品输出组成,采用伺服电机,超声波焊接技术完成生产.

The whole machine is composed of the material rack part, the upper nose line part, the shape welding part, the folding forming, the shape cutter part, the welding ear belt part, and the finished product output. The servo motor and ultrasonic welding technology are used to complete the production.

1.料架部分:自动送料,刹车配合控制器,保证材料张力.

1. Material rack part: automatic feeding, brake cooperate with controller to ensure material tension.

2.鼻梁条部分:采用调速电机控制自动输送鼻梁条配合齿模超声波焊接

2. Nose bridge section: the cylinder is welded by ultrasonic wave, and the nose bridge is automatically conveyed

3.外形熔接部分:定制齿模配合超声波,完成纹路焊接.

3. Shape welding part: the mold is matched with ultrasonic wave to complete the texture welding.

4.折叠成型:折叠布料

4. Folding: folding fabric

5.外形切刀部分:定制切刀,滚切成型.

5. Shape cutter part: customized cutter, roll-cutting forming.

6.翻转部分:可根据口罩焊接方式实现翻转.

6. Flip part: turn the mask over.

7.耳带焊接:采用全伺服控制效率高每分钟可高达70PCS(±10%)后期维护成本低,配合超声波完成耳带线焊接.

7. Adopt full servo control, high efficiency, up to 70PCS per minute (±10%), low maintenance cost in later stage, and complete the welding of ear strap line with ultrasonic.

8.成品输出:口罩成品输出,收集.

8. Output of finished products: output and collection of finished masks.

四、原材料规格(建议):

Raw material specifications (recommended):

由外至内(材料幅宽260mm)

From outside to inside (material width 260mm)

第一层

The first ply SS级50克无纺布

SS grade 50g non-woven 最外层

Outermost

第二层

The second ply 99级25克熔喷布

99grade 25g melt blown

第三层

The third ply 99级25克熔喷布

99grade 25g melt blown

第四层

The fourth ply SS级25克无纺布

SS grade 25g non-woven 最内层

Innermost

五、细节展示Details

六、设备使用环境Euipment use environment

万级无尘车间使用.

1. Use in the 100,000 class clean room.

2.温度:室温环境,湿度:40%-80%.

2. Temperature: room temperature environment, humidity: 40%-80%.

3.电源:AC220V,50Hz .

3. Power supply: AC220V, 50Hz.

4.气压:≥ .

4. Air pressure: ≥.

全自动鱼型KF94口罩机是广东秦泰盛智能化科技有限公司的主要产品,我们的产品负责人是赵小姐,有需要的朋友请直接拨打我的电话0769-81664889,我们的地址是intech,期待与您的合作!
