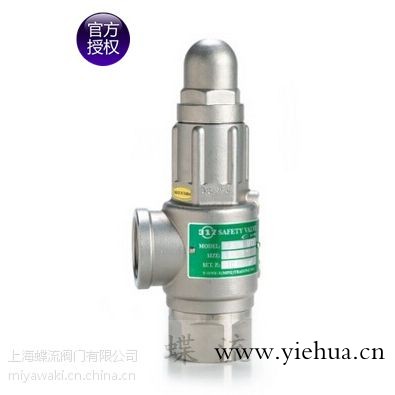

MODEL:	SV-S8DA(FT) / SVP-S8DA(FT)  (WITHOUT LEVER)
MODEL:	SV-S8DL(FT) / SVP-S8DL(FT)  (WITH LEVER)

When placing order, please indicate Working Pressure
Double Female Screwed. (Inlet/Outlet)

The features of low lift stainless steel safety valves for which the valve seat & disc are processed by lapping.

The Disc can be replaced with PTFE for good effect of anti-leakage. Model: SVP-S8DA(FT), SVP-S8DL(FT)

Working Fluid	metal to metal Non-Corrosive Gas, Corrosive Gas, Air, Steam. PTFE l Non-corrosive Gas / Liquid. l Corrosive Gas/Liquid; Air, Steam, Water, Oil.
Working Temp	-196℃～290℃ (metaL TO metaL) -60℃～196℃ (PTFE)
Working Pressure	SV-S8DA(FT) / SV-S8DL(FT) ~ 10 Kgf/cm2 , 11 ~ 20 Kgf/cm2 SV-S8DA-H3(FT) / SV-S8DL-H3(FT) 20 ~ 30 Kgf/cm2 SVP-S8DA(FT) / SVP-S8DL(FT) 2 ~ 10 Kgf/cm2 , 11 ~ 20 Kgf/cm2 (PTFE)
